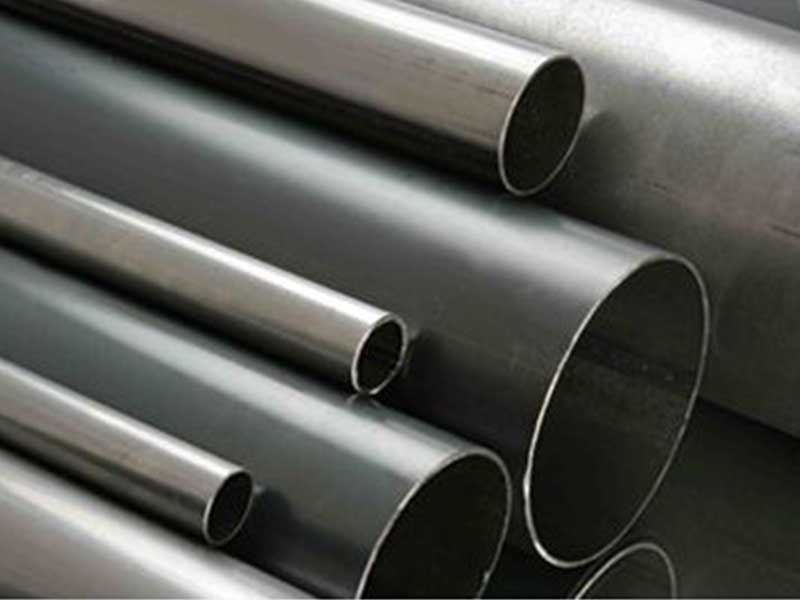

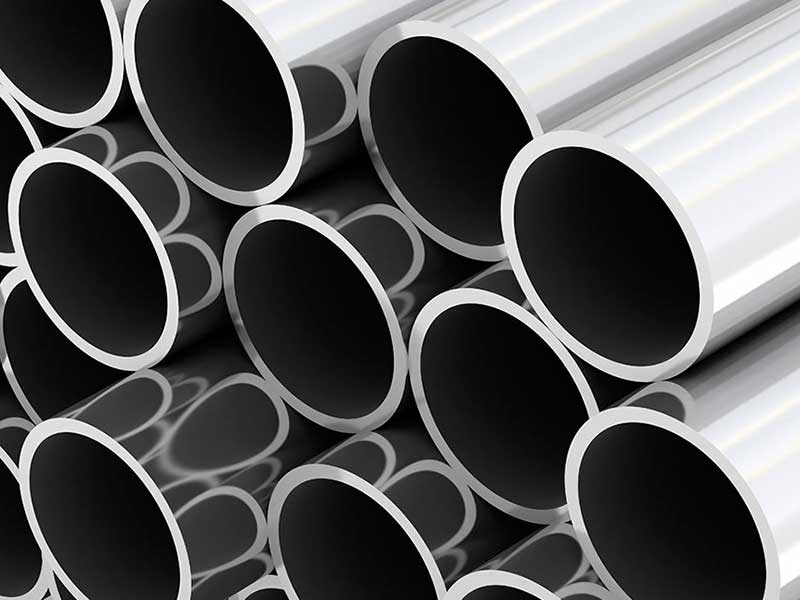

Tubo mofle

Diámetro Exterior (D)		Peso Teórico
mm.	pulgadas	Calibre	Kg. / m	Kg. / 6m
mm.	pulgadas	t	Kg. / m	Kg. / 6m
12.7	1 / 2″	18	0.38	2.28
12.7	1 / 2″	20	0.294	1.764
15.875	5 / 8″	14	0.715	4.29
		16	0.6	3.6
		18	0.488	2.928
		20	0.383	2.298
19.05	3 / 4″	14	0.87	5.22
		16	0.725	4.35
		18	0.593	3.358
		20	0.452	2.712
20.64	13 / 16″	14	0.96	5.76
		16	0.785	4.71
		18	0.625	3.75
		20	0.504	3.024
22.22	7 / 8″	14	1.02	6.12
		16	0.83	4.98
		18	0.683	4.098
		20	0.525	3.15
23.8	15 / 16″	14	1.12	6.72
		16	0.895	5.37
		18	0.735	4.41
		20	0.56	3.36
25.4	1″	14	1.17	7.02
		16	0.96	5.76
		18	0.789	4.734
		20	0.6	3.6
28.57	1 1 / 8″	14	1.33	7.98
		16	1.071	6.426
		18	0.88	5.28
		20	0.672	4.032
31.75	1 1 / 4″	14	1.51	9.12
		16	1.21	7.296
		18	0.978	5.868
		20	0.756	4.536
33.4	1.315″	14	1.575	9.45
		16	1.26	7.56
		18	1.03	6.18
		20	0.79	4.74
34.92	1 3/8″	13	1.93	11.5
		14	1.64	9.84
		16	1.33	7.98
		18	1.07	6.42
		20	0.81	4.86
		22	0.686	4.116
38.1	1 1 / 2″	14	1.827	10.962
		16	1.45	8.7
		18	1.19	7.14
		20	0.903	5.418
41.3	1 5 / 8″	14	1.98	11.88
		16	1.584	9.504
		18	1.267	7.602
		20	0.95	5.7
42.16	1.660″	14	2.05	12.3
		16	1.67	10.02
		18	1.325	7.95
		20	1.01	6.06
44.45	1 3 / 4″	14	2.13	12.78
		16	1.703	10.218
		18	1.396	8.376
		20	1.07	6.42
47.62	1 7 / 8″	14	2.282	13.692
		16	1.826	10.956
		18	1.461	8.766
		20	1.095	6.57
48.26	1.900 “	14	2.135	12.81
		16	1.72	10.32
		18	1.4	8.4
		20	1.16	6.96
50.8	2″	14	2.48	14.88
		16	1.985	11.91
		18	1.62	9.72
		20	1.234	7.404
57.1	2 1 / 4″	14	2.814	16.884
		16	2.205	13.23
		18	1.752	10.512
		20	1.344	8.064
60.4	2 3 / 8″	14	2.864	17.184
		16	2.33	13.98
		18	1.89	11.34
		20	1.407	8.442
63.5	2 1 / 2″	14	3.1	18.6
		16	2.49	14.94
		18	2.021	12.12
73.03	2 7 / 8″	14	3.52	21.12
		16	2.835	17.01
		18	2.32	13.92
76.2	3″	14	3.71	22.26
		16	2.96	17.76
		18	2.42	14.52
88.9	3 1 / 2″	14	4.37	26.22
		16	3.49	20.94
		18	2.85	17.1
101.6	4″	14	4.85	29.1
		16	3.96	23.76
		18	3.185	19.11
